Some More Photos of Stan
 |

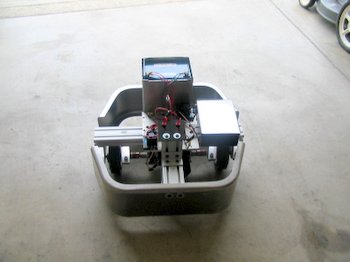

From the top. |
 |

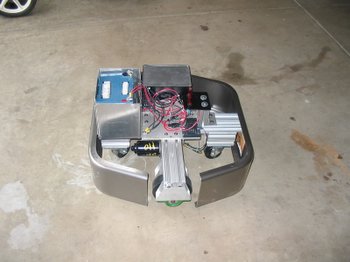

From the side. |
 |

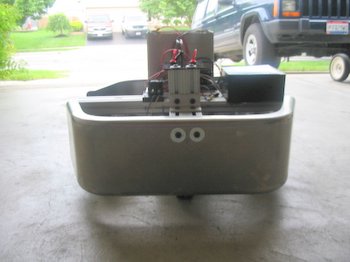

From the front. |
Built: 2004-05-01 00:00:00
Some guys at work were running around the parking lot with these little plastic cars. So one week-end I decided to modify Feynman into and Battle Bot minus the weapon.
This bot actually moved about as fast in the short term as the cars. I did run over one but because of the STAR design of the robot I found it quite limited and poor to maneuver. Something I would correct in later robots.
Specs
| Chassis: | 80-20 Aluminum Extrusion (2) Fenders from Tractor Supply. |
| Power: | 12VDC 33AH Battery |
| Movement: | (2) Windsheild wiper motors from F-150 from junkyard $30. (2) Victor 883 Speed Controllers. (IFI Robotics cost of $150/ea ($300 total). |
| Sensors: | None. |
| CPU/OS: | None. |
| Other Info: | 100% Remote Controlled. |
| Software Info: |
